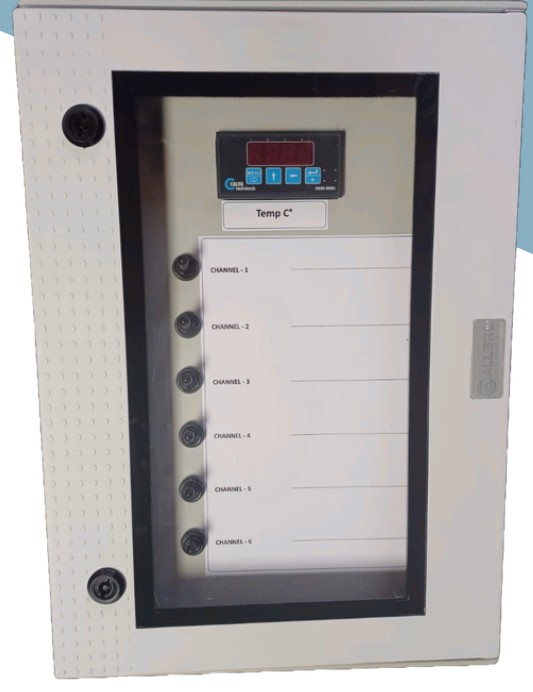

PBT Display Unit
6-way 4-20mA
The PBT Display Unit provides a cost-effective way to read the 4-20mA outputs of
analogue plummer block temperature sensors (PBTS) as a value in degrees
centigrade.
Up to 6 PBTS devices can be connected to a PBT Display Unit by routing the 2-core
cable for each PBTS through the PBT Display Unit. The operator uses a springloaded toggle switch to select one PBTS channel at a time, and the display will show
the temperature of the currently selected PBTS.
KEY FEATURES:
- Up to 6 PBTS devices, 2-wire 4-20mA
- Scaled for 0 – 100°C
- Has no influence on the output of the PBTS devices Isolated 4-20mA input
- Wide supply voltage range 100 – 240VAC
FUNCTIONALITY:
Please see diagram below for operation detail. Only one channel is shown for clarity.
The channel selecting switches has a spring return which ensures the PBTS is not connected to the display unit unless actuated manually.
In the resting position, the signal is routed directly to the 4-20mA input on the external controller.
Only one channel can be selected at a time. Selecting a channel will connect the signal to loop through the isolator before returning to the 4-20mA input on the controller.
The display unit converts the output signal from the isolator into a temperature reading.
MECHANICAL SPECIFICATIONS:
- Physical Dimensions: 500L x 350W x 200H mm
- Weight: ± 2.3 kg
APPLICATIONS:
- Plummer block temperature indication
SPECIFICATIONS:
- Measuring Range: 0 – 100 °C
- Analogue Input Signal:
4-20 mA, 2-wire
- Maximum Load Resistance:
800 ohm @ 24VDC
- Power Input:100 – 240VAC
- Power Consumption:50W
